Good quality EPS vacuum casting machine for heating panel from China

Products Details：

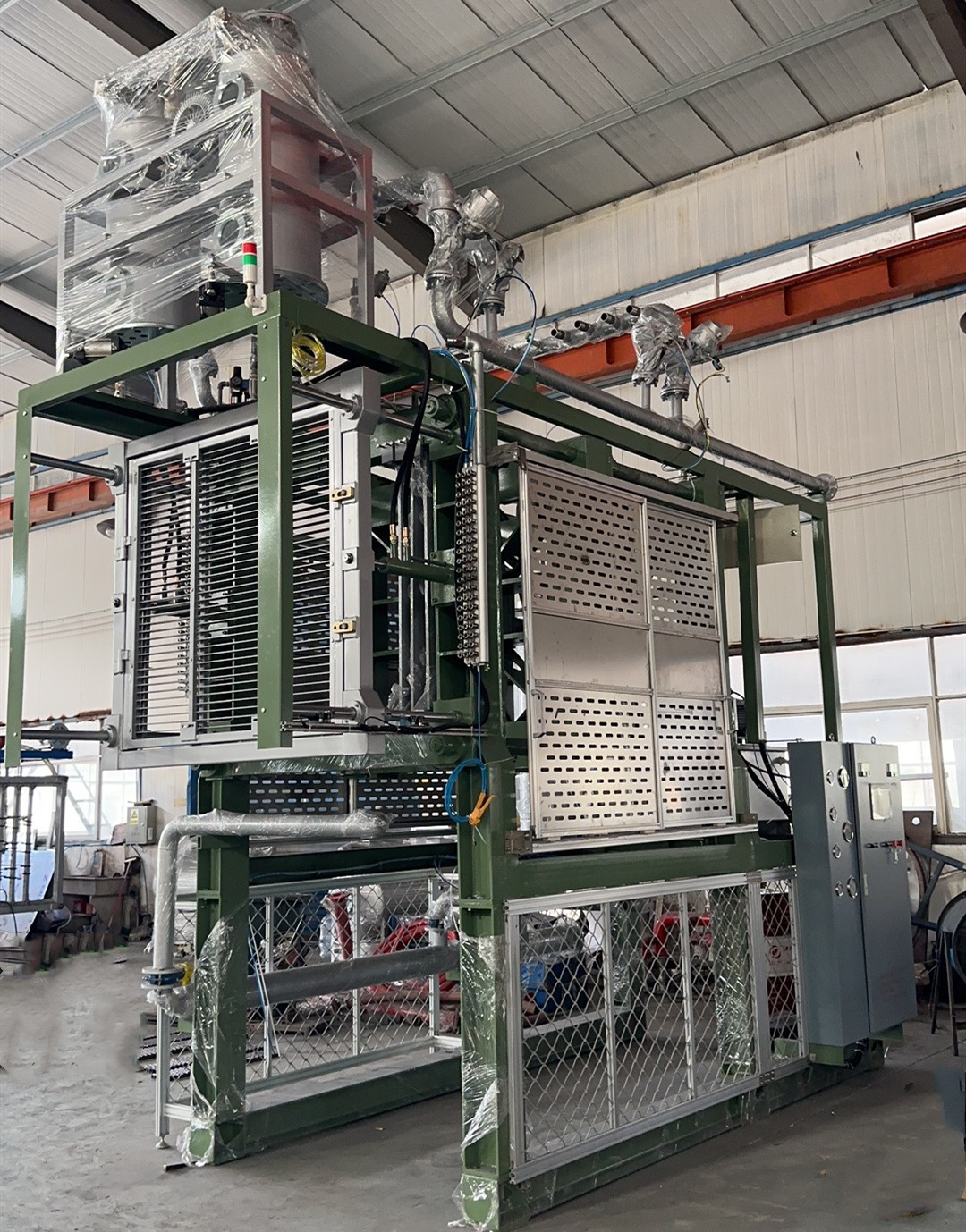

EPS vacuum casting machine is used together with mould to produce packaging products like electrical packing, vegetable and fruit boxes, seedling trays etc. and construction products like brick insert and ICF etc. With different moulds, the machine can produce different shape.

EPS vacuum casting machine has efficient vacuum system, fast hydraulic system, and fast drainage system. For the same product, cycle time in E type machine is 25% shorter than in normal machine, and energy consumption is 25% less.

Machine completes with Mitsubishi PLC and Schneider (or Winview) touch screen, with big steam lines for better heating and low pressure heating, material hopper with quick couplers for fast changing filling hoses, with Stainless Steel air quick couplers for fast changing air tubes

EPS vacuum casting machine Main Features

1. Machine plates are made of thicker steel plates so it’s long lasting;

2. Machine has efficient vacuum system, vacuum tank and condenser tank separate;

3. Machine use fast hydraulic system, saving mould closing and opening time;

4. Different filling methods are available to avoid filling problem in special products;

5. Machine uses big pipe system, allowing low pressure steaming. 3~4bar steam can work the machine;

6. Machine steam pressure and penetration steaming are controlled by German Pressure manometer and pressure regulators;

7. Components used in the machine are mostly imported and famous branded products, low malfunction;

8. Machine with lifting legs, so client only need to make a simple working platform for workers.
