Products Details:

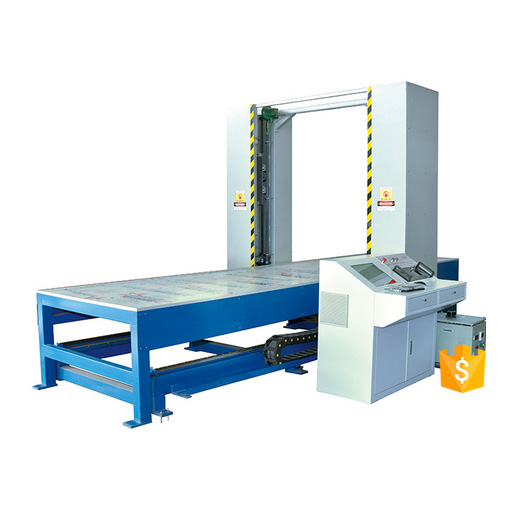

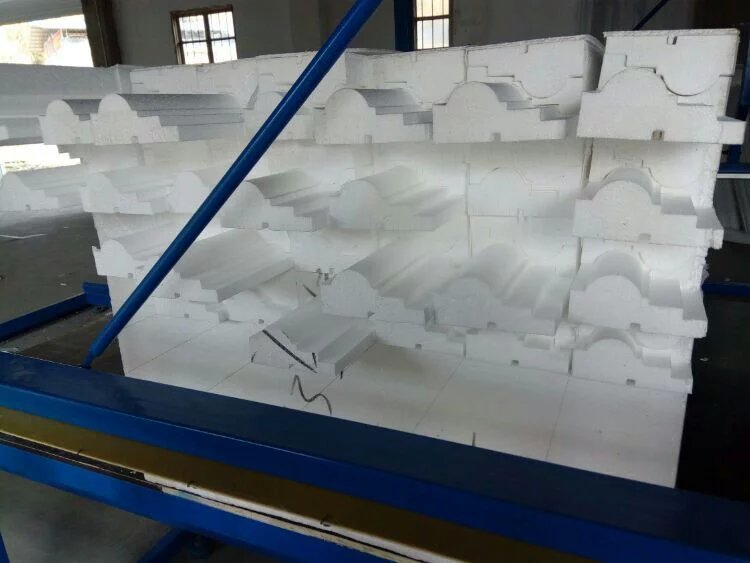

EPS CNC cutting machine is to cut EPS blocks to required shapes as per designed drawing. Machine is controlled by PC.
Features:
1.All the machines are driven by the remarkable software:the software speeds up the design process and enables the operator to obtain the best yield from the foam block;
2.It has perfect safe system to prevent the accident:all Motors will stop when the safety dooropened; Exigency button on both machine and control box is for preventing accident.
|

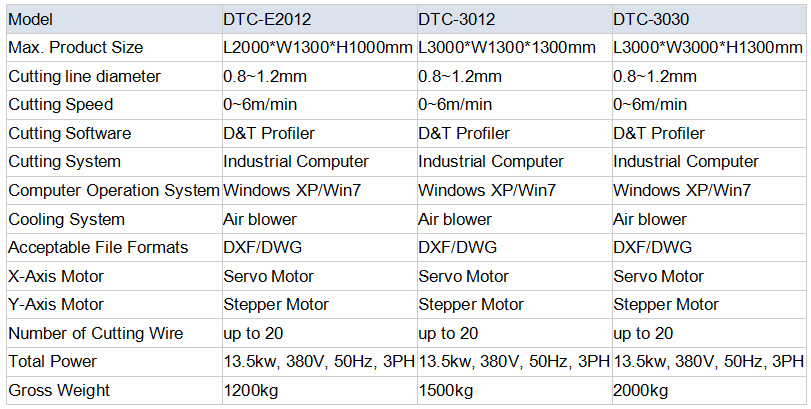

Model |
DTC-E2012 |
DTC-3012 |
DTC-3030 |
|
Max. Product Size |
L2000*W1300*H1000mm |
L3000*W1300*1300mm |
L3000*W3000*H1300mm |
|
Cutting line diameter |
0.8~1.2mm |
0.8~1.2mm |
0.8~1.2mm |
|
Cutting Speed |
0~6m/min |
0~6m/min |
0~6m/min |
|
Cutting Software |
D&T Profiler |
D&T Profiler |
D&T Profiler |
|
Cutting System |
Industrial Computer |
Industrial Computer |
Industrial Computer |
|
Computer Operation System |
Windows XP/Win7 |
Windows XP/Win7 |
Windows XP/Win7 |
|
Cooling System |
Air blower |
Air blower |
Air blower |
|
Acceptable File Formats |
DXF/DWG |
DXF/DWG |
DXF/DWG |
|
X-Axis Motor |
Servo Motor |
Servo Motor |
Servo Motor |
|
Y-Axis Motor |
Stepper Motor |
Stepper Motor |
Stepper Motor |
|
Number of Cutting Wire |
up to 20 |
upto20 |
up to20 |
|
Total Power |
13.5kw, 380V, 50Hz, 3PH |
13.5kw, 380V, 50Hz, 3PH |
13.5kw, 380V, 50Hz, 3PH |
|
Gross Weight |
1200kg |
1500kg |
2000kg |
